SpringBoot打包并结合shell脚本命令部署,重点在分享一个shell程序启动工具,希望能便利工作:

  • profiles指定不同环境的配置
  • maven-assembly-plugin打发布压缩包
  • shenniu_publish.sh程序启动工具
  • linux上使用shenniu_publish.sh启动程序

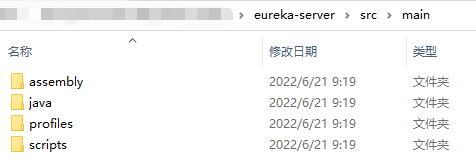

示例项目文件结构:

profiles指定不同环境的配置

通常一套程序分为了很多个部署环境:开发,测试,uat,线上 等,要想对这些环境区分配置文件,可以通过两种方式:

  • 通过application.yml中编码指定profile.active=uat方式指定
  • 通过pom.xml中profiles来区分不同环境对应的配置文件夹,人工可以手动在idea勾选生成不同环境的包(推荐)

这里要讲的是第二种,首先在pom.xml中配置如下内容:

<profiles>
<profile>
<id>node</id>
<properties>
<!--传递给脚本的参数值-->
<activeProfile>node</activeProfile>
<package-name>${scripts_packageName}</package-name>
<boot-main>${scripts_bootMain}</boot-main>
</properties>
<activation>
<activeByDefault>true</activeByDefault>
</activation>
</profile>
<profile>
<id>node1</id>
<properties>
<activeProfile>node1</activeProfile>
<package-name>${scripts_packageName}</package-name>
<boot-main>${scripts_bootMain}</boot-main>
</properties>
</profile>
<profile>
<id>node2</id>
<properties>
<activeProfile>node2</activeProfile>
<package-name>${scripts_packageName}</package-name>
<boot-main>${scripts_bootMain}</boot-main>
</properties>
</profile>
</profiles>

节点粗解:

  • id:用来指定不同环境配置文件所在的目录,如下:

  • properties:该节点中的节点是可作为参数传递给其他配置文件,如这里的package-name节点值就可以在另外的assembly.xml或者shell脚本文件中通过${package-name}获取到,如下shenniu_publish.sh文件示例:

  • activeByDefault:指定默认环境配置文件夹

maven-assembly-plugin打发布压缩包

对于SpringBoot程序打包,可以分为jarwar,这里是jar包;有些场景是配置文件或者第三方等依赖包不想放到工程jar中,并且把这些文件压缩成一个zip包,方便上传到linux;此时通过maven-assembly-pluginmaven-jar-plugin就可以做到,pom.xml的配置如下:

<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-jar-plugin</artifactId>
<version>2.6</version>
<configuration>
<archive>
<addMavenDescriptor>false</addMavenDescriptor>
<manifest>
<addClasspath>true</addClasspath>
<classpathPrefix>lib/</classpathPrefix>
<mainClass>${scripts_bootMain}</mainClass>
</manifest>
</archive>
<!--打包排除项-->
<excludes>
<exclude>**/*.yml</exclude>
<exclude>**/*.properties</exclude>
<exclude>**/*.xml</exclude>
<exclude>**/*.sh</exclude>
</excludes>
</configuration>
<executions>
<execution>
<id>make-a-jar</id>
<phase>compile</phase>
<goals>
<goal>jar</goal>
</goals>
</execution>
</executions>
</plugin>

<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-assembly-plugin</artifactId>
<version>2.4</version>
<!-- The configuration of the plugin -->
<configuration>
<!-- Specifies the configuration file of the assembly plugin -->
<descriptors>
<descriptor>${project.basedir}/src/main/assembly/assembly.xml</descriptor>
</descriptors>
</configuration>
<executions>
<execution>
<id>make-assembly</id>
<phase>package</phase>
<goals>
<goal>single</goal>
</goals>
</execution>
</executions>
</plugin>

值得注意的地方如下几点:

  • mainClass节点:用来指定启动main函数入口类路径,如这里的:com.sm.EurekaServerApplication
  • excludes节点:排除主jar包中配置等一些列后缀文件,因为要包这些配置文件放到主包外面
  • descriptor节点:用来指定assembly插件对应的assembly.xml配置文件

完整pom.xml文件内容:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.7.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.sm</groupId>
<artifactId>eureka-server</artifactId>
<version>0.0.1</version>
<name>eureka-server</name>
<description>Demo project for Spring Boot</description>

<properties>
<java.version>1.8</java.version>
<spring-cloud.version>Finchley.SR2</spring-cloud.version>

<scripts_packageName>${project.artifactId}-${project.version}</scripts_packageName>
<scripts_bootMain>com.sm.EurekaServerApplication</scripts_bootMain>
</properties>

<profiles>
<profile>
<id>node</id>
<properties>
<!--传递给脚本的参数值-->
<activeProfile>node</activeProfile>
<package-name>${scripts_packageName}</package-name>
<boot-main>${scripts_bootMain}</boot-main>
</properties>
<activation>
<activeByDefault>true</activeByDefault>
</activation>
</profile>
<profile>
<id>node1</id>
<properties>
<activeProfile>node1</activeProfile>
<package-name>${scripts_packageName}</package-name>
<boot-main>${scripts_bootMain}</boot-main>
</properties>
</profile>
<profile>
<id>node2</id>
<properties>
<activeProfile>node2</activeProfile>
<package-name>${scripts_packageName}</package-name>
<boot-main>${scripts_bootMain}</boot-main>
</properties>
</profile>
<profile>
<id>node3</id>
<properties>
<activeProfile>node3</activeProfile>
<package-name>${scripts_packageName}</package-name>
<boot-main>${scripts_bootMain}</boot-main>
</properties>
</profile>
</profiles>

<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>

<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>

<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring-cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>

<build>

<resources>
<resource>
<directory>${project.basedir}/src/main/profiles/${activeProfile}</directory>
</resource>
<resource>
<directory>${project.basedir}/src/main/resources</directory>
<includes>
<include>static/**</include>
<include>templates/**</include>
</includes>
</resource>
</resources>

<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<configuration>
<includes>
<include>
<groupId>non-exists</groupId>
<artifactId>non-exists</artifactId>
</include>
</includes>
</configuration>
<executions>
<execution>
<goals>
<goal>repackage</goal>
</goals>
</execution>
</executions>
</plugin>

<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>1.8</source>
<target>1.8</target>
</configuration>
</plugin>

<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-jar-plugin</artifactId>
<version>2.6</version>
<configuration>
<archive>
<addMavenDescriptor>false</addMavenDescriptor>
<manifest>
<addClasspath>true</addClasspath>
<classpathPrefix>lib/</classpathPrefix>
<mainClass>${scripts_bootMain}</mainClass>
</manifest>
</archive>
<!--打包排除项-->
<excludes>
<exclude>**/*.yml</exclude>
<exclude>**/*.properties</exclude>
<exclude>**/*.xml</exclude>
<exclude>**/*.sh</exclude>
</excludes>
</configuration>
<executions>
<execution>
<id>make-a-jar</id>
<phase>compile</phase>
<goals>
<goal>jar</goal>
</goals>
</execution>
</executions>
</plugin>

<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-assembly-plugin</artifactId>
<version>2.4</version>
<!-- The configuration of the plugin -->
<configuration>
<!-- Specifies the configuration file of the assembly plugin -->
<descriptors>
<descriptor>${project.basedir}/src/main/assembly/assembly.xml</descriptor>
</descriptors>
</configuration>
<executions>
<execution>
<id>make-assembly</id>
<phase>package</phase>
<goals>
<goal>single</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>

有了上面pom.xml配置,还需要assembly.xml的配置,这里提取了结合shell脚本发布程序的配置:

<assembly xmlns="http://maven.apache.org/ASSEMBLY/2.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/ASSEMBLY/2.0.0 http://maven.apache.org/xsd/assembly-2.0.0.xsd
http://maven.apache.org/ASSEMBLY/2.0.0 ">
<id>${activeProfile}</id>
<!--打包成一个用于发布的zip文件-->
<formats>
<format>zip</format>
</formats>
<!--true:zip中生成一级目录(此处屏蔽,配合脚本需要profiles后缀)-->
<includeBaseDirectory>false</includeBaseDirectory>
<dependencySets>
<dependencySet>
<!--打包进zip文件的lib目录-->
<useProjectArtifact>false</useProjectArtifact>
<outputDirectory>${package-name}-${activeProfile}/lib</outputDirectory>
<unpack>false</unpack>
</dependencySet>
</dependencySets>

<fileSets>
<!-- 配置文件打包进zip文件的conf目录 -->
<fileSet>
<directory>${project.basedir}/src/main/profiles/${activeProfile}</directory>
<outputDirectory>${package-name}-${activeProfile}/conf</outputDirectory>
<includes>
<include>**/*</include>
<!--<include>*.xml</include>-->
<!--<include>*.properties</include>-->
<!--<include>*.yml</include>-->
</includes>
</fileSet>

<!--启动脚本打包进zip文件-->
<fileSet>
<directory>${project.basedir}/src/main/scripts</directory>
<outputDirectory></outputDirectory>
<includes>
<include>**/*</include>
</includes>
<!-- 文件文件权限为777 -->
<fileMode>777</fileMode>
<!-- 目录权限为777 -->
<directoryMode>777</directoryMode>
<!--脚本中参数变量为pom中的值 关键-->
<filtered>true</filtered>
</fileSet>

<!-- 项目编译出来的jar打包进zip文件 -->
<fileSet>
<directory>${project.build.directory}</directory>
<outputDirectory>${package-name}-${activeProfile}/</outputDirectory>
<includes>
<include>*.jar</include>
</includes>
</fileSet>
</fileSets>
</assembly>

节点解析:

  • formats节点:把配置文件和jar包等压缩成什么文件格式,这里可以有:zip,tar等
  • fileMode节点:指定scripts目录下脚本文件(shenniu_publish.sh)在linux上文件权限为777

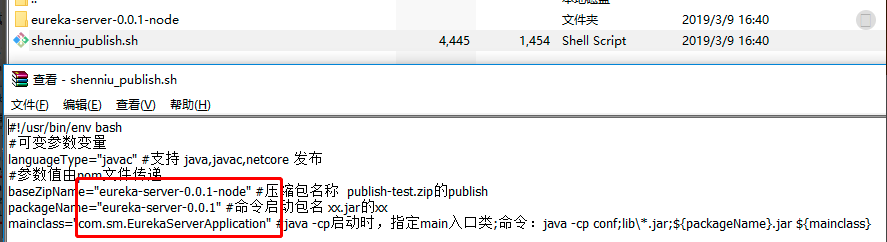

  • filtered节点:脚本中参数变量为pom.xml的profiles中properties的值(该配置,是把pom.xml中属性值映射生成到sh文件中,如:${package-name})

完成上面配置后,此时可以通过idea上勾选切换不同环境来打zip包,如图:

shenniu_publish.sh程序启动工具

上面步骤完成了zip格式的发布包,再分享下启动程序的shell脚本,该脚本具有的功能如下:

  • 解压zip+启动jar包
  • 启动jar包
  • 停止对应jar运行

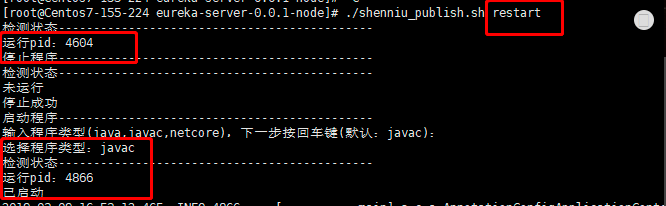

  • 重启jar程序

目前该shell中封装了两种启动jar命令的方式:

  • java -cp
  • java -jar

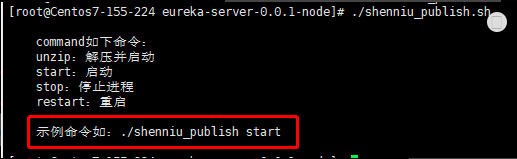

如图命令格式:

完整shell代码

#!/usr/bin/env bash
#可变参数变量
languageType="javac" #支持 java,javac,netcore 发布
#参数值由pom文件传递

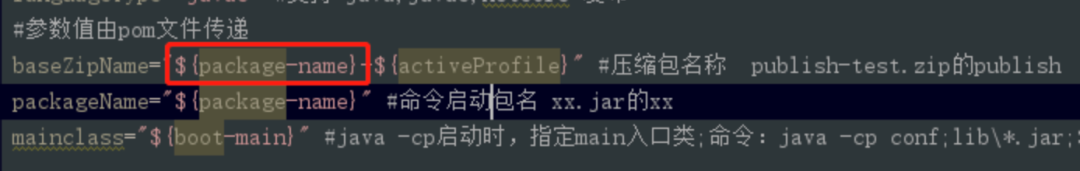

baseZipName="${package-name}-${activeProfile}" #压缩包名称
packageName="${package-name}" #命令启动包名
mainclass="${boot-main}" #java -cp启动时,指定main入口类;命令:java -cp conf;lib\*.jar;${packageName}.jar ${mainclass}

#例子
# baseZipName="publish-test" #压缩包名称 publish-test.zip的publish
# packageName="publish" #命令启动包名 publish.jar的xx

#固定变量
basePath=$(cd `dirname $0`/; pwd)
baseZipPath="${basePath}/${baseZipName}.zip" #压缩包路径
baseDirPath="${basePath}" #解压部署磁盘路径
pid= #进程pid

#解压
function shenniu_unzip()
{
echo "解压---------------------------------------------"
echo "压缩包路径:${baseZipPath}"
if [ ! `find ${baseZipPath}` ]
then
echo "不存在压缩包:${baseZipPath}"
else
echo "解压磁盘路径:${baseDirPath}/${baseZipName}"
echo "开始解压..."

#解压命令
unzip -od ${baseDirPath}/${baseZipName} ${baseZipPath}

#设置执行权限
chmod +x ${baseDirPath}/${baseZipName}/${packageName}

echo "解压完成。"
fi
}

#检测pid
function getPid()
{
echo "检测状态---------------------------------------------"
pid=`ps -ef | grep -n ${packageName} | grep -v grep | awk '{print $2}'`
if [ ${pid} ]
then
echo "运行pid:${pid}"
else
echo "未运行"
fi
}

#启动程序
function start()
{
#启动前,先停止之前的
stop
if [ ${pid} ]
then
echo "停止程序失败,无法启动"
else
echo "启动程序---------------------------------------------"

#选择语言类型
read -p "输入程序类型(java,javac,netcore),下一步按回车键(默认:${languageType}):" read_languageType
if [ ${read_languageType} ]
then
languageType=${read_languageType}
fi
echo "选择程序类型:${languageType}"

#进入运行包目录
cd ${baseDirPath}/${baseZipName}

#分类启动
if [ "${languageType}" == "javac" ]
then
if [ ${mainclass} ]
then
nohup java -cp conf:lib\*.jar:${packageName}.jar ${mainclass} >${baseDirPath}/${packageName}.out 2>&1 &
#nohup java -cp conf:lib\*.jar:${packageName}.jar ${mainclass} >/dev/null 2>&1 &
fi
elif [ "${languageType}" == "java" ]
then
nohup java -jar ${baseDirPath}/${baseZipName}/${packageName}.jar >/dev/null 2>&1 &
# java -jar ${baseDirPath}/${baseZipName}/${packageName}.jar
elif [ "${languageType}" == "netcore" ]
then
#nohup dotnet run ${baseDirPath}/${baseZipName}/${packageName} >/dev/null 2>&1 &
nohup ${baseDirPath}/${baseZipName}/${packageName} >/dev/null 2>&1 &
fi

#查询是否有启动进程
getPid
if [ ${pid} ]
then
echo "已启动"
#nohup日志
tail -n 50 -f ${baseDirPath}/${packageName}.out
else
echo "启动失败"
fi
fi
}

#停止程序
function stop()
{
getPid
if [ ${pid} ]
then
echo "停止程序---------------------------------------------"
kill -9 ${pid}

getPid
if [ ${pid} ]
then
#stop
echo "停止失败"
else
echo "停止成功"
fi
fi
}

#启动时带参数,根据参数执行
if [ ${#} -ge 1 ]
then
case ${1} in
"start")
start
;;
"restart")
start
;;
"stop")
stop
;;
"unzip")
#执行解压
shenniu_unzip
#执行启动
start
;;
*)
echo "${1}无任何操作"
;;
esac
else
echo "
command如下命令:
unzip:解压并启动
start:启动
stop:停止进程
restart:重启

示例命令如:./shenniu_publish start
"
fi

shell中的参数package-name,activeProfile,boot-main 都是由pom.xml中profiles的properties中提供,是可变的参数脚本代码本身不需要人工去修改,只需要变的是pom.xml的参数即可;其实在生成zip包的时候,shell中的参数就被替换了,可以看zip中shell文件内容如下:

linux上使用shenniu_publish.sh启动程序

把生成的zip上传到linux上,通过命令解压:

# -od 不显示解压过程,从 zip 文件移出一个文件
unzip -od eureka-server-0.0.1-node eureka-server-0.0.1-node.zip

其实shell脚本中包含有解压命令,但是在打包时放在了zip中,所以只能通过手动解压了,当然可以调整;此时进入解压目录如此:

:这里第一次执行./shenniu_publish.sh脚本时候,提示了错误信息是由于是在windows上编辑的这个脚本,其空格等和linux上不一样,所以运行会有问题,要解决可以使用vim命令在linux把该文件转成linux格式,如下命令:

vim shenniu_publish.sh
set ff=unix
:wq

执行完后,再来运行脚本./shenniu_publish.sh,此时有如下提示:

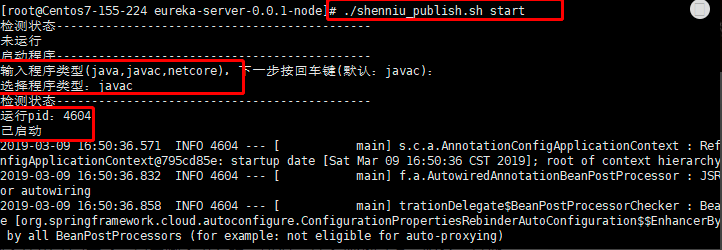

此刻文件是解压状态,因此只需要start命令启动程序即可:

到这里shenniu_publish.sh脚本使用就完成了,只要脚本没有提示错误,基本都能启动jar服务;其他restart和stop命令也如此执行就行:
